TDK
NV1-1G000-C
TDK LAMBDA NV1-1G000-C AC/DC Enclosed Power Supply, 1U Applications, Fixed, 1 Outputs, 90 V, 264 V, 175 W, 24 V
Quick Jump:
Technical Specifications
TDK NV1-1G000-C technical specifications.
General
Current - Output 1
7.5A
Depth
31.75mm
Efficiency
90%
Length
127mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
7.5A
Max Output Power
175W
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
7.5A
Output Voltage
24V
Reach SVHC Compliant
Unknown
Voltage - Output 1
24V
Weight
250g
Width
76mm
Compliance
RoHS
Compliant
Datasheet
TDK NV1-1G000-C Datasheet
Download the complete datasheet for TDK NV1-1G000-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

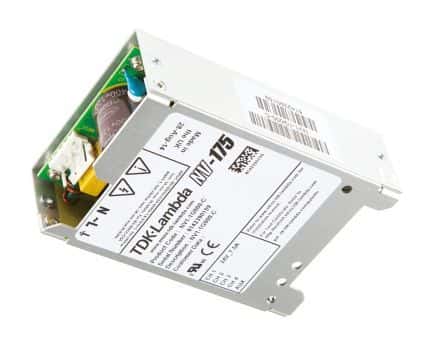

Product Images
