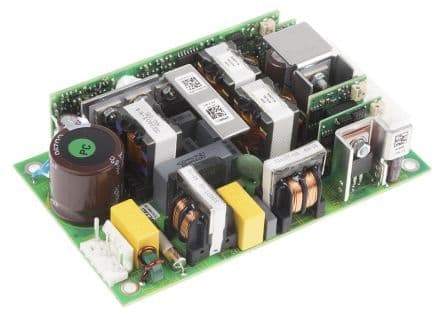

Enclosed AC/DC power supply delivering 175W maximum output power. Features four outputs: 5V at 25A, 3.3V at 15A, 15V at 5A, and -15V at 1A. Offers 90% efficiency and 4.3kV isolation voltage. Designed for chassis or panel mounting, with operating temperatures from 0°C to 70°C. Approvals include CE, UL, CSA, IEC, and EN.
Frequency63Hz
MountingChassis Mount, Panel
Power175W
Quick Jump:
Technical Specifications
TDK NV1453FF technical specifications.
General
Approvals
CE, UL, CSA, IEC, EN
Current - Output 1
25A
Current - Output 2
15A
Current - Output 3
5A
Depth
76.2mm
Efficiency
90%
Frequency
63Hz
Height
1.25inch
Input Current
25A
Isolation Voltage
4.3kV
Length
1inch
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Power
175W
Max Power Dissipation
175W
Mount
Chassis Mount, Panel
Number of Outputs
4
Output Current
25A
Output Power
175W
Output Voltage
5V
Packaging
Bulk
Radiation Hardening
No
Series
NV175
Voltage - Output 1
5V
Voltage - Output 2
3.3V
Voltage - Output 3
15V
Voltage - Output 4
-15V
Weight
0.529109oz
Width
1inch
Compliance
RoHS
Compliant
