This 500V 200A EMI filter is a chassis mount device with a terminal block termination. It operates within a temperature range of -25°C to 85°C and is compliant with UL and EN approvals. The filter is designed for use in power line applications and is packaged in bulk quantities.
Frequency60 Hz
Current200A
Current Rating200A
MountingChassis Mount
Quick Jump:
Technical Specifications
TDK RTEN-5200 technical specifications.
General
| Approvals | UL, EN |
| Current | 200A |
| Current Rating | 200A |
| Max Current Rating | 200A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Chassis Mount |
| Operating Frequency | 60 Hz |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | RTEN |
| Termination | Terminal Block |
| Voltage Rating (AC) | 500V |
| Weight | 20.283lb |
Compliance
| RoHS | Compliant |
Datasheet
TDK RTEN-5200 Datasheet
Download the complete datasheet for TDK RTEN-5200 to view detailed technical specifications.
No datasheet is available for this part.

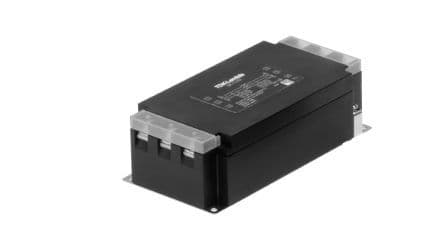

Product Images
