Technical Specifications

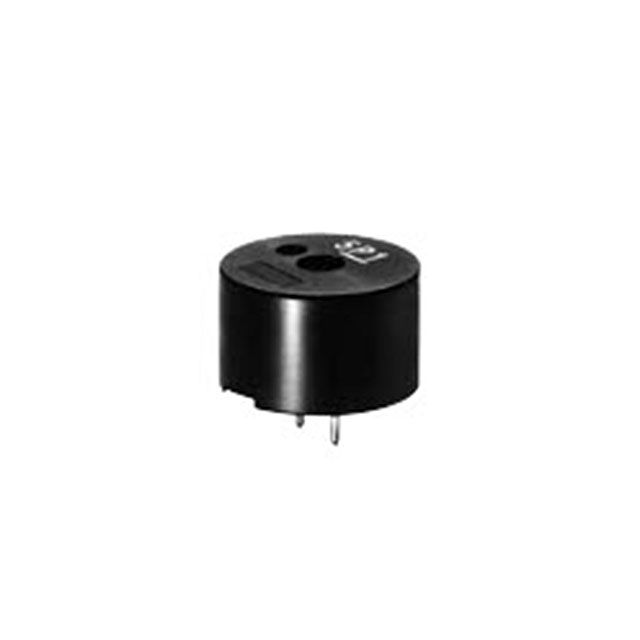

TDK SDC1610MT-01 technical specifications.
General
Diameter
16mm
Frequency
2.4kHz
Height
10mm
Input Type
DC
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Supply Current
25mA
Mount
Through Hole
Nominal Supply Voltage (DC)
12V
Operating Supply Current
25mA
Packaging
Tray
Series
SDC
Termination
PC Pins
Voltage Rating
12V
Compliance
RoHS
Compliant
Datasheet
TDK SDC1610MT-01 Datasheet
Download the complete datasheet for TDK SDC1610MT-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
