Surface mount general purpose inductor featuring 330µH inductance with a 20% tolerance, designed for broad application use. This shielded, ferrite-core component offers a rated current of 540mA and a DC resistance of 816mΩ. Operating across a temperature range of -40°C to 105°C, it is housed in a 10.1mm x 10.1mm x 4.5mm package and is RoHS compliant.
PackageNonstandard
Current Rating580mA
MountingSurface Mount
Inductance330uH
Quick Jump:
Technical Specifications
TDK SLF10145T-331MR54-PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
580mA
DC Resistance (DCR)
816mR
Depth
10.1mm
Height
4.5mm
Height - Seated (Max)
0.189inch
Inductance
330uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
10.1mm
Max DC Current
540mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Rated Current-Max
540mA
Reach SVHC Compliant
No
RMS Current (Irms)
540mA
RoHS Compliant
Yes
Saturation Current
540mA
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
0.398inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF10145T-331MR54-PF Datasheet
Download the complete datasheet for TDK SLF10145T-331MR54-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

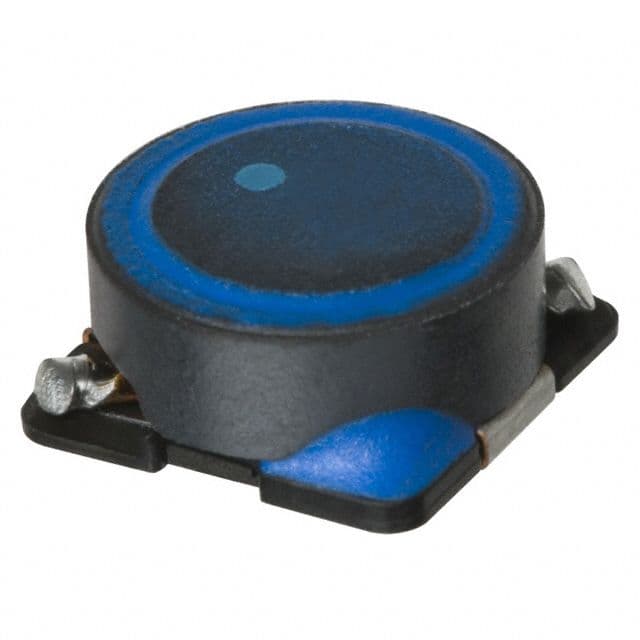

Product Images
