TDK
SLF10165T-3R3N5R83PF
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 5.8A 0.0125Ohm DCR T/R
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK SLF10165T-3R3N5R83PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
12.5mR
Height
7mm
Inductance
3.3uH
Lead Free
Lead Free
Length
10.1mm
Max DC Current
5.83A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Rated Current-Max
7.8A
RoHS Compliant
Yes
Saturation Current
7.8A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF10165T-3R3N5R83PF Datasheet
Download the complete datasheet for TDK SLF10165T-3R3N5R83PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

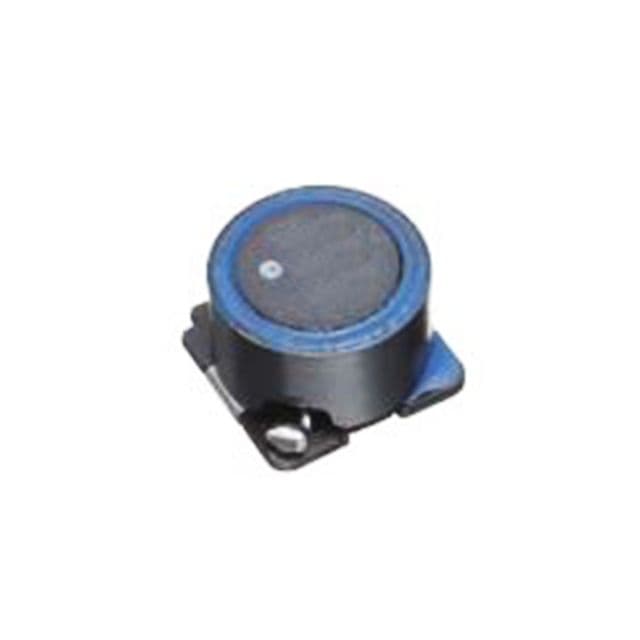

Product Images
