Shielded, surface mount general purpose inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 4A rated current, and 26.3mΩ DC resistance. Operates from -40°C to 105°C, with dimensions of 12.5mm (L) x 12.8mm (W) x 7.5mm (H). RoHS compliant and supplied on tape and reel.
Current Rating4A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
TDK SLF12575T-220M4R0-PF technical specifications.
General
Core Material
Ferrite
Current Rating
4A
DC Current
4A
DC Resistance (DCR)
26.3mR
Depth
12.8mm
Height
7.5mm
Height - Seated (Max)
0.309inch
Inductance
22uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
12.5mm
Max DC Current
4A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Rated Current-Max
4A
Reach SVHC Compliant
No
RMS Current (Irms)
4A
RoHS Compliant
Yes
Saturation Current
4A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF12575T-220M4R0-PF Datasheet
Download the complete datasheet for TDK SLF12575T-220M4R0-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

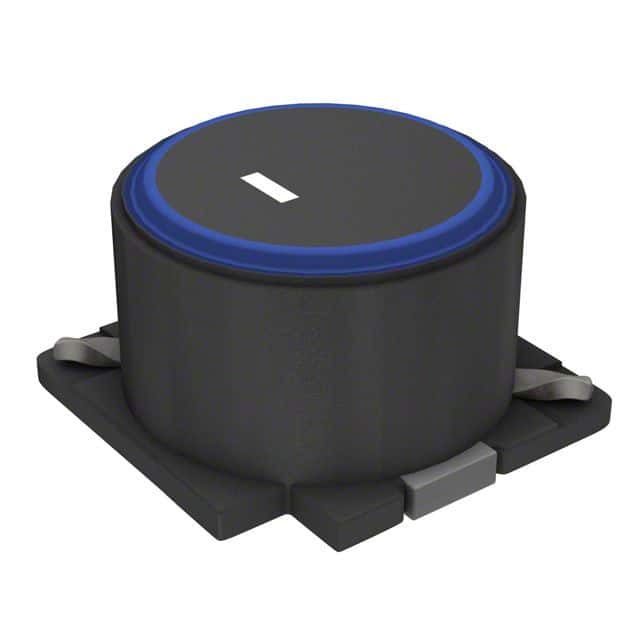

Product Images
