Surface mount shielded wirewound power inductor with 47µH inductance and 20% tolerance. Features a ferrite core, 920mA current rating, and 252mΩ DC resistance. Operates from -40°C to 105°C, with a 590mA saturation current. Packaged in tape and reel for automated assembly.
Package2424
Current Rating920mA
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
TDK SLF6028T-470MR59-PF technical specifications.
General
Case Code (Metric)
6028
Package/Case
2424
Core Material
Ferrite
Current Rating
920mA
DC Resistance (DCR)
252mR
Depth
6mm
Height
2.8mm
Height - Seated (Max)
0.118inch
Inductance
47uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
6mm
Max DC Current
590mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Rated Current-Max
590mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Saturation Current
590mA
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF6028T-470MR59-PF Datasheet
Download the complete datasheet for TDK SLF6028T-470MR59-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

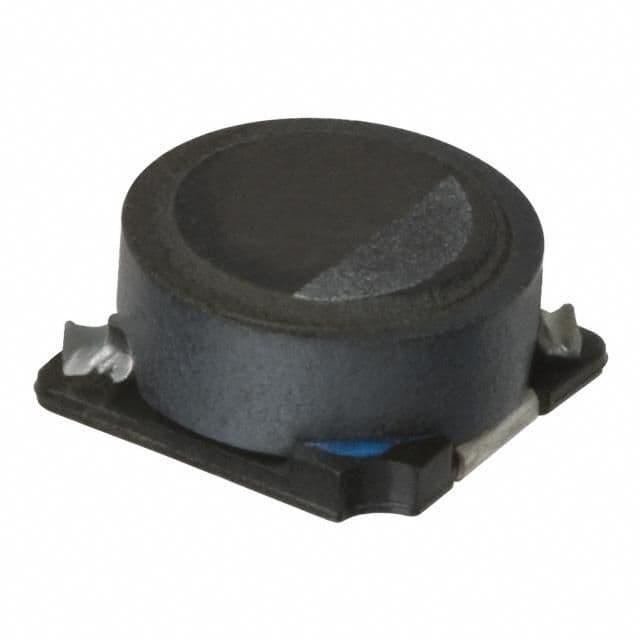

Product Images
