General purpose, shielded, surface mount inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 2.7A RMS current rating, and 1.6A saturation current. Operating temperature range is -40°C to 105°C. Housed in a 6045 metric case code, this component is RoHS compliant and supplied on tape and reel.
PackageNonstandard
Current Rating2.7A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK SLF6045T-100M1R6-3PF technical specifications.
General
Case Code (Metric)
6045
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.7A
DC Resistance (DCR)
46.8mR
Height
4.5mm
Height - Seated (Max)
0.189inch
Inductance
10uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
0.236inch
Max DC Current
1.6A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Rated Current-Max
1.6A
Reach SVHC Compliant
No
RMS Current (Irms)
2.7A
RoHS Compliant
Yes
Saturation Current
1.6A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF6045T-100M1R6-3PF Datasheet
Download the complete datasheet for TDK SLF6045T-100M1R6-3PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

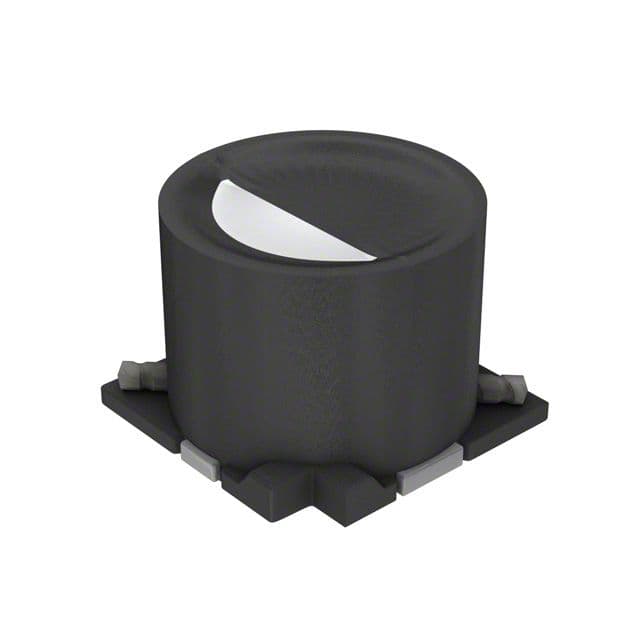

Product Images
