TDK
SLF7032T-150M1R1-2PF
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.1A 0.09Ohm DCR T/R
PackageNonstandard
MountingSurface Mount
Inductance15uH
Quick Jump:
Technical Specifications
TDK SLF7032T-150M1R1-2PF technical specifications.
General
Case Code (Metric)
7032
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
90mR
Depth
7.2mm
Height
3.2mm
Inductance
15uH
Lead Free
Lead Free
Length
7mm
Max DC Current
1.1A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Rated Current-Max
1.1A
RoHS Compliant
Yes
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF7032T-150M1R1-2PF Datasheet
Download the complete datasheet for TDK SLF7032T-150M1R1-2PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

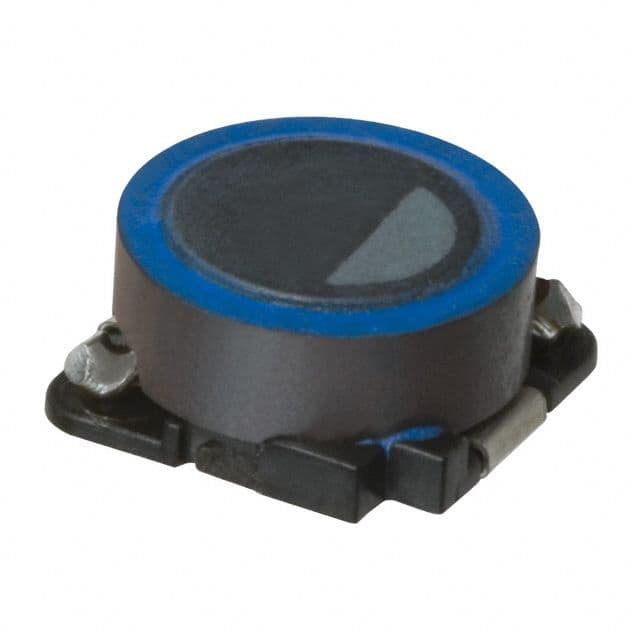

Product Images
