Surface mount shielded wirewound power inductor with 470µH inductance and 20% tolerance, operating at 100kHz. Features a ferrite core, 200mA DC current rating, and 2.05Ω DC resistance. Housed in a 7032 metric case with dimensions of 7mm length, 7mm width, and 3.2mm height. Suitable for a wide operating temperature range of -40°C to 105°C.
PackageNonstandard
MountingSurface Mount
Inductance470uH
Quick Jump:
Technical Specifications
TDK SLF7032T-471MR20-2PF technical specifications.
General
Case Code (Metric)
7032
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
200mA
DC Resistance (DCR)
2.05R
Depth
7.2mm
Height
3.2mm
Inductance
470uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7mm
Max DC Current
200mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
200mA
RoHS Compliant
Yes
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
TDK SLF7032T-471MR20-2PF Datasheet
Download the complete datasheet for TDK SLF7032T-471MR20-2PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

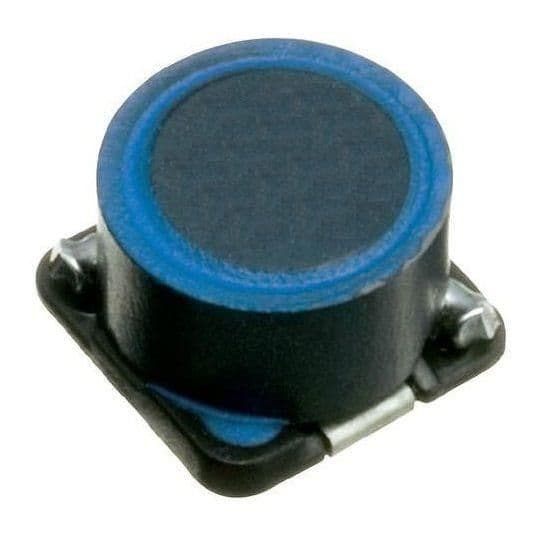

Product Images
