Surface mount general purpose inductor with 10µH inductance and 20% tolerance. Features a ferrite core, shielded construction, and a 1.3A saturation current. Rated for 1.78A DC/RMS current with a DC resistance of 36mΩ. Operates from -40°C to 85°C and is RoHS compliant. Dimensions are 7mm length, 7.2mm depth, and 4.5mm height.
PackageNonstandard
Current Rating1.78A
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK SLF7045T-100M1R3-PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.78A
DC Current
1.78A
DC Resistance (DCR)
36mR
Depth
7.2mm
Height
4.5mm
Height - Seated (Max)
0.189inch
Inductance
10uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
7mm
Max DC Current
1.78A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.3A
Reach SVHC Compliant
No
RMS Current (Irms)
1.78A
RoHS Compliant
Yes
Saturation Current
1.3A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF7045T-100M1R3-PF Datasheet
Download the complete datasheet for TDK SLF7045T-100M1R3-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

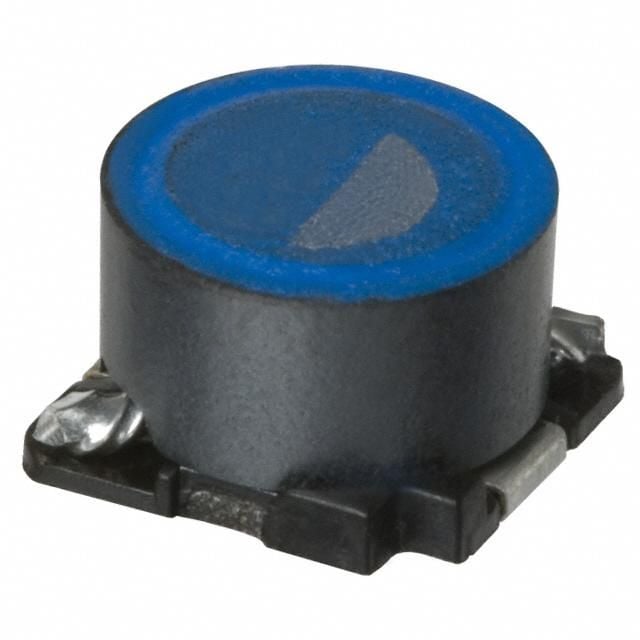

Product Images
