Shielded, ferrite-core, general-purpose inductor with 3.3µH inductance and 20% tolerance. Features a 2.5A rated current, 2.3A RMS current, and 2.3A DC current rating. Surface mountable with a low 20mΩ DC resistance. Operates across a -40°C to 85°C temperature range.
PackageNonstandard
Current Rating2.3A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK SLF7045T-3R3M2R5-PF technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.3A
DC Current
2.3A
DC Resistance (DCR)
20mR
Depth
7.2mm
Height
4.5mm
Height - Seated (Max)
0.189inch
Inductance
3.3uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
0.276inch
Max DC Current
2.5A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Rated Current-Max
2.5A
Reach SVHC Compliant
No
RMS Current (Irms)
2.3A
RoHS Compliant
Yes
Saturation Current
2.5A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF7045T-3R3M2R5-PF Datasheet
Download the complete datasheet for TDK SLF7045T-3R3M2R5-PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

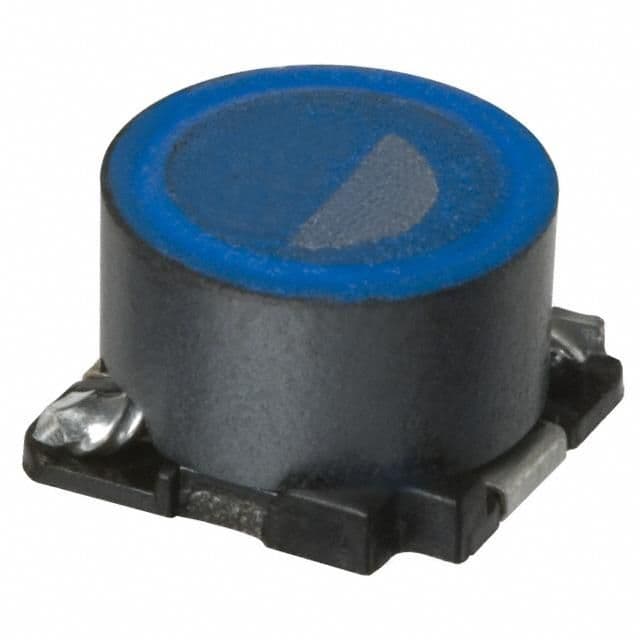

Product Images
