Surface mount shielded wirewound power inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 2A RMS current rating, and 1.7A saturation current. DC resistance is 77.2mΩ at a test frequency of 100kHz. Operating temperature range is -40°C to 105°C. Packaged in tape and reel.
PackageNonstandard
Current Rating2A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
TDK SLF7055T-220M1R7-3PF technical specifications.
General
Case Code (Metric)
7055
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2A
DC Resistance (DCR)
77.2mR
Height
5.5mm
Height - Seated (Max)
0.228inch
Inductance
22uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
0.276inch
Max DC Current
1.7A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Rated Current-Max
1.7A
Reach SVHC Compliant
No
RMS Current (Irms)
2A
RoHS Compliant
Yes
Saturation Current
1.7A
Series
SLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.276inch
Compliance
RoHS
Compliant
Datasheet
TDK SLF7055T-220M1R7-3PF Datasheet
Download the complete datasheet for TDK SLF7055T-220M1R7-3PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

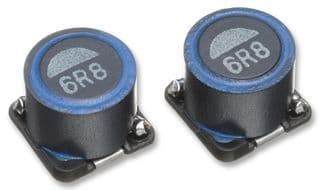

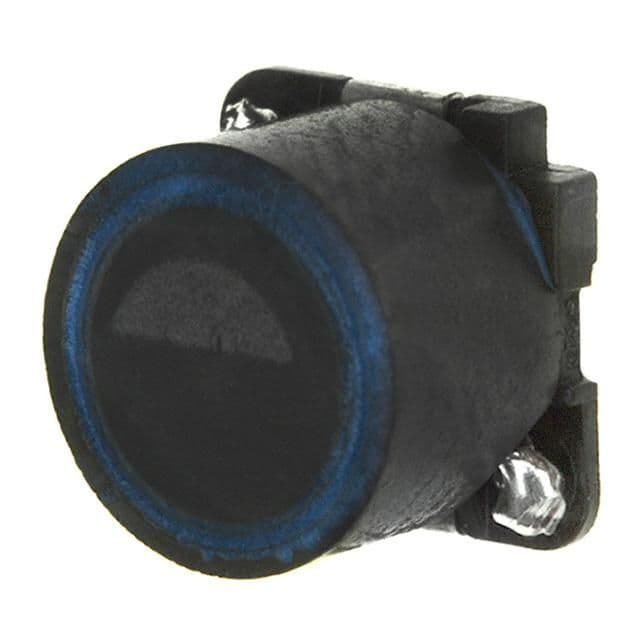

Product Images
