TDK
SPM6545VT-4R7M-D

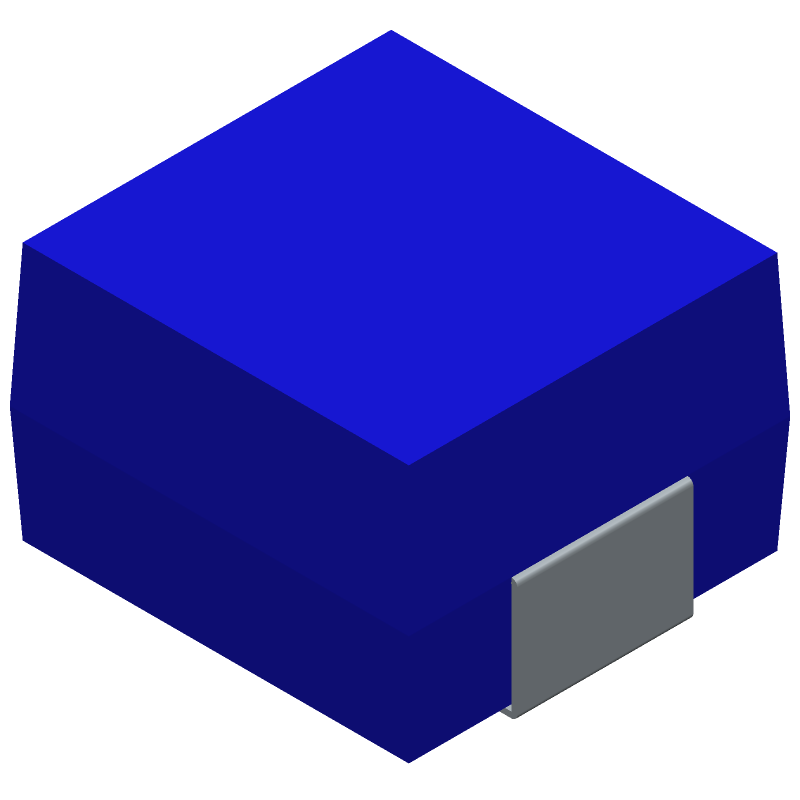

Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Metal 6.7A 0.0242Ohm DCR Automotive T/R
Quick Jump:
Technical Specifications
TDK SPM6545VT-4R7M-D technical specifications.
General
| Max Operating Temperature | 155 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 7 |
| Tolerance | 20 |
| Package Width | 6.5 |
| Package Height | 4.5 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 4.7 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | POWER INDUCTOR |
| DC Resistance | 0.022 |
| Rated Current-Max | 6.7 |
| Test Frequency | 0.1 |
Compliance
| RoHS | Yes |
| REACH | unknown |
| Military Spec | False |
Datasheet
TDK SPM6545VT-4R7M-D Datasheet
Download the complete datasheet for TDK SPM6545VT-4R7M-D to view detailed technical specifications.
No datasheet is available for this part.
