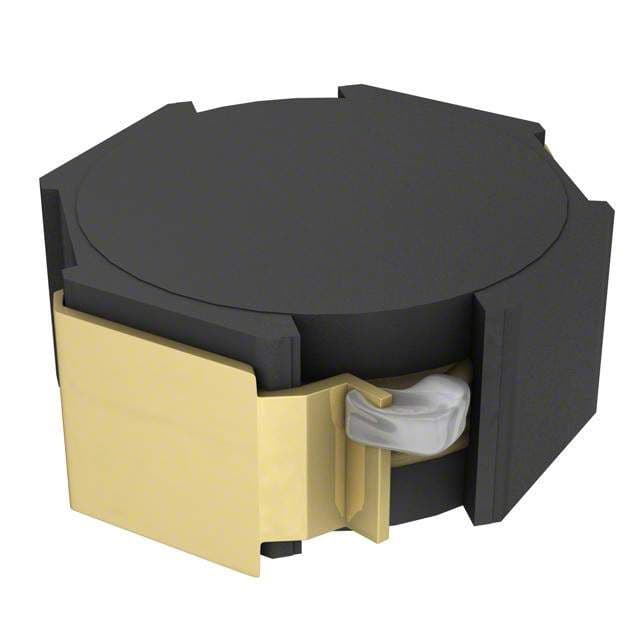

Surface mount shielded wirewound power inductor with 4.7µH inductance and 30% tolerance. Features a ferrite core, 5.6A RMS current rating, and 5.4A saturation current. DC resistance is 15.3mΩ. Operates from -40°C to 105°C and is supplied on tape and reel.
PackageNonstandard
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK VLF10040T-4R7N5R4 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
15.3mR
Depth
10.1mm
Height
4mm
Inductance
4.7uH
Inductance Tolerance
30%
Lead Free
Lead Free
Length
9.7mm
Max DC Current
5.4A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
5.6A
RoHS Compliant
Yes
Saturation Current
5.4A
Series
VLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
10mm
Compliance
RoHS
Compliant
Datasheet
TDK VLF10040T-4R7N5R4 Datasheet
Download the complete datasheet for TDK VLF10040T-4R7N5R4 to view detailed technical specifications.
