Surface mount shielded wirewound power inductor with 3.3µH inductance and 20% tolerance. Features a ferrite core, 1.3A DC current rating, and 120mΩ DC resistance. Operates from -40°C to 105°C and is supplied on tape and reel.
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
TDK VLF4012AT-3R3M1R3 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
1.3A
DC Resistance (DCR)
120mR
Depth
3.8mm
Height
1.2mm
Inductance
3.3uH
Inductance Tolerance
20%
Inductor Type
Coil
Lead Free
Lead Free
Length
3.5mm
Max DC Current
1.3A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
1.3A
RoHS Compliant
Yes
Saturation Current
1.3A
Series
VLF
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
TDK VLF4012AT-3R3M1R3 Datasheet
Download the complete datasheet for TDK VLF4012AT-3R3M1R3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

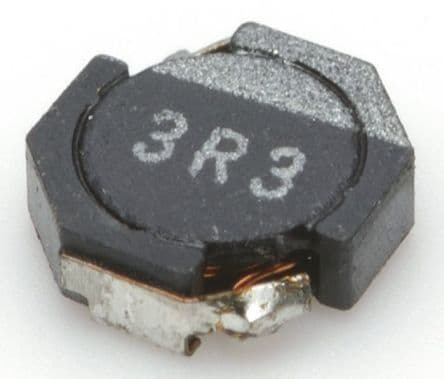

Product Images
