Surface mount shielded wirewound power inductor with 2.2µH inductance and 20% tolerance. Features a ferrite core, 1.3A RMS current rating, and 1.55A saturation current. Operates from -40°C to 105°C with a low 154mΩ DC resistance. Packaged in a 1008 (2520 metric) case, this component is supplied on tape and reel.
Package1008
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK VLS252012ET-2R2M technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 154mR |
| Depth | 2.1mm |
| Height | 1.2mm |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Length | 2.5mm |
| Max DC Current | 1.75A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.3A |
| RoHS Compliant | Yes |
| Saturation Current | 1.55A |
| Series | VLS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS252012ET-2R2M Datasheet
Download the complete datasheet for TDK VLS252012ET-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

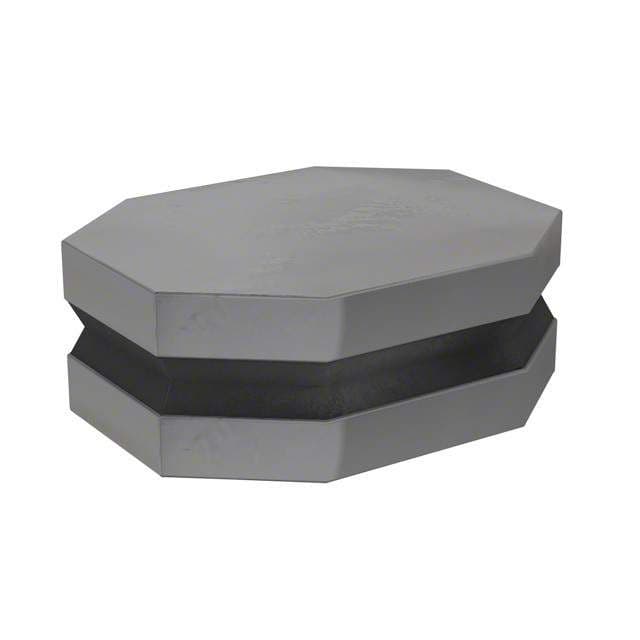

Product Images
