Surface mount shielded wirewound power inductor with 4.7µH inductance and 20% tolerance. Features a ferrite core, 1.9A RMS current rating, and 1.2A saturation current. DC resistance is 118mΩ at a test frequency of 1MHz. Operating temperature range is -40°C to 105°C. Dimensions are 4mm x 4.1mm x 1.2mm.
PackageNonstandard
Current Rating1.2A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK VLS4012ET-4R7M technical specifications.
General
| Case Code (Metric) | 4012 |
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.2A |
| DC Resistance (DCR) | 118mR |
| Depth | 4.1mm |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 4mm |
| Max DC Current | 1.4A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.9A |
| RoHS Compliant | Yes |
| Saturation Current | 1.2A |
| Self Resonant Frequency | 1MHz |
| Series | VLS-E |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS4012ET-4R7M Datasheet
Download the complete datasheet for TDK VLS4012ET-4R7M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

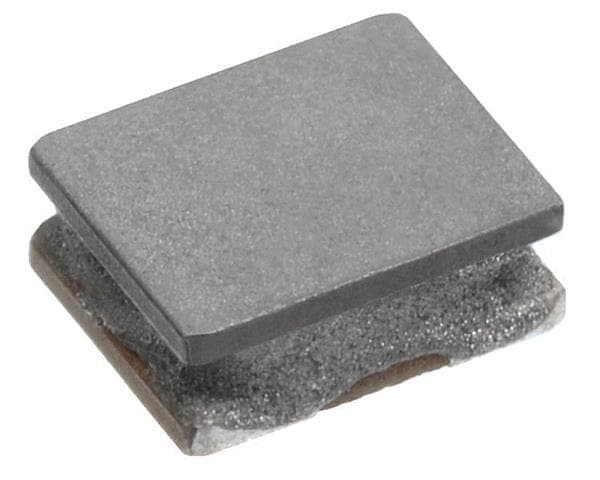

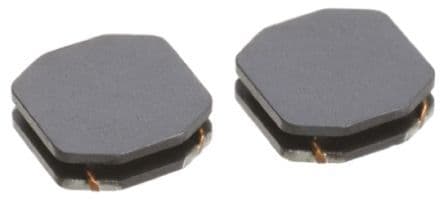

Product Images
