Benchtop power supply featuring a single output with adjustable voltage up to 320V and a maximum output current of 2.5A. Delivers up to 800W of output power with 89% efficiency. Equipped with a digital display for precise monitoring. Operating temperature range from 0°C to 50°C. Compact design with dimensions of 83mm (H) x 70mm (W) x 350mm (L) and a weight of 4.2lb.
Power800W
Quick Jump:
Technical Specifications
TDK Z320-2.5-U technical specifications.
General
Current - Output 1
2.5A
Display Type
Digital
Efficiency
89%
Height
83mm
Length
350mm
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Output Current
2.5A
Max Output Power
800W
Max Power Dissipation
800W
Number of Outputs
1
Output Current
2.5A
Output Power
800W
Output Voltage
320V
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Series
Z+
Voltage - Output 1
320V
Weight
4.2lb
Width
70mm
Wire/Cable Type
Power Cord
Compliance
RoHS
Compliant
Datasheet
TDK Z320-2.5-U Datasheet
Download the complete datasheet for TDK Z320-2.5-U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

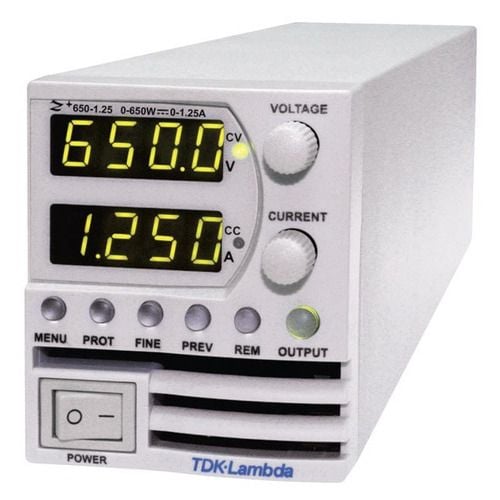

Product Images
