50 Position, 2-Row Female Socket Header for Board-to-Board applications. Features a 2.54mm pitch and 0.1-inch row spacing, with a 3A contact current rating and 250V AC voltage rating. Constructed with copper contacts and a black UL94 V-0 flammability rated housing. Designed for free hanging, cable mounting with crimp termination, supporting wire gauges from 22AWG to 30AWG. Operates within a temperature range of -65°C to 105°C.
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-102387-0 technical specifications.
General
Approvals
CSA
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Copper
Contact Type
Female Socket
Current Rating
3A
Depth
15.24mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
7.23mm
Housing Color
Black
Lead Free
Lead Free
Length
2.6inch
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MOD IV
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating (AC)
250V
Width
7.23mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-102387-0 Datasheet
Download the complete datasheet for TE Connectivity 1-102387-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

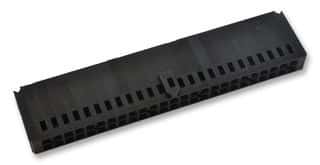

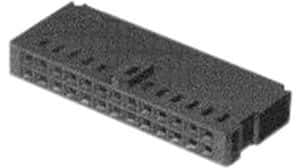

Product Images
