1-103638-3

Datasheet

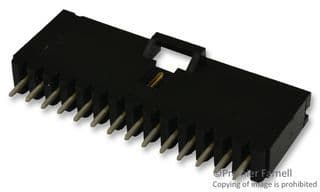

14 Pos 2.54mm Shrouded Header, Male, Straight, 3A, Gold, Thru-Hole

TE Connectivity

1-103638-3

Name: 1-103638-3 TE Connectivity
Brand: TE Connectivity
SKU: 1-103638-3

14 Pos 2.54mm Shrouded Header, Male, Straight, 3A, Gold, Thru-Hole

Shrouded Header, 14 Positions, Straight, Through-Hole Mount. Features male pin contacts with a 2.54mm pitch and 3A current rating. Contacts are brass with gold plating, offering 2.54um thickness and a mating length of 0.23 inches. The black thermoplastic housing has a 13.59mm height and 6.98mm depth, with a UL94 V-0 flammability rating. Operating temperature range is -65°C to 105°C.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-103638-3 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Contact Current Rating	3A
Contact Finish - Mating	GOLD
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	0.23inch
Contact Plating	Gold, Tin, Lead, Matte
Contact Retention	Yes (With)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Depth	6.98mm
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	13.59mm
Housing Color	Black
Insulation Color	Black
Insulation Material	Thermoplastic
Lead Free	Contains Lead
Length	1.5inch
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Rows	1
Orientation	Straight
Package Quantity	15
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating Thickness	2.54um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	0.1inch
Series	AMPMODU MTE
Strain Relief	No (Without)
Tail Length	3.3mm
Termination	Crimp
