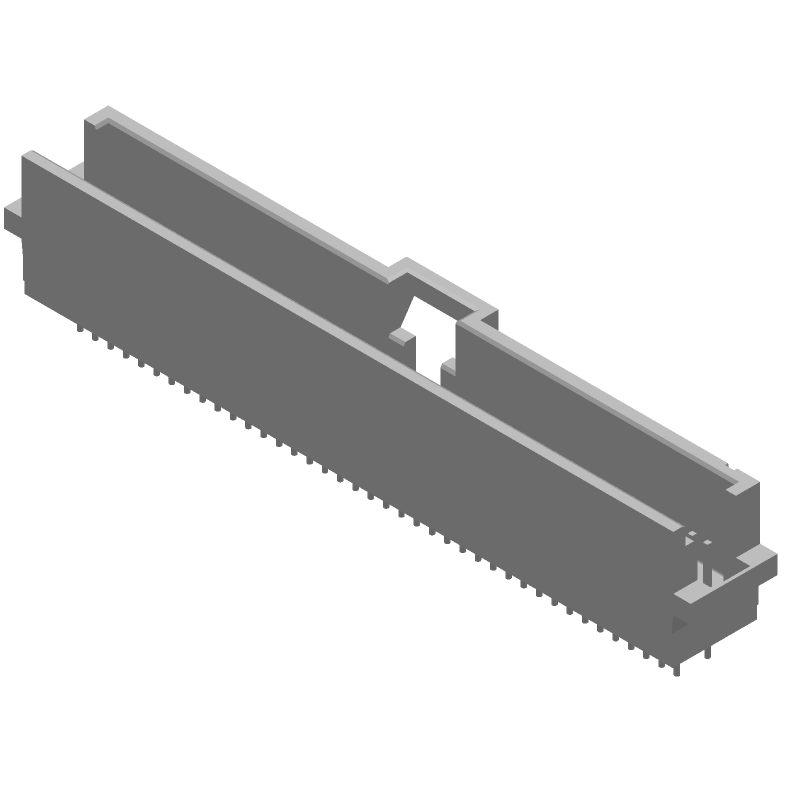

80-position shrouded header with 1.27mm pitch, straight orientation, and through-hole termination. Features copper alloy contacts with gold, tin, and lead plating, rated for 1A and 30V AC. Includes mating alignment, mating connector lock, and board standoff. Operating temperature range is -65°C to 105°C, with UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-104068-6 technical specifications.
General
| Approvals | CSA |
| Board Standoff | Yes (With) |
| Color | Black |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.1inch |
| Contact Plating | Gold, Tin, Lead |
| Contact Post Length | 0.1inch |
| Contact Protection | Yes (With) |
| Contact Shape | Round |
| Depth | 8.73mm |
| Flammability Rating | UL94 V-0 |
| Gasket | No (Without) |
| Housing Color | Black |
| Keyed | No |
| Length | 56.99mm |
| Mating Alignment | Yes (With) |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Through Hole |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 9 |
| Packaging | Rail/Tube |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.397mm |
| Pitch | 0.05inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Row Spacing | 2.54mm |
| Selectively Loaded | No (Without) |
| Series | AMPMODU System 50 |
| Stabilizers | No (Without) |
| Strain Relief | No (Without) |
| Termination | Through Hole |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 1-104068-6 Datasheet
Download the complete datasheet for TE Connectivity 1-104068-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
