Female socket contact for discrete wire termination, featuring a straight, unshielded, crimp style with tin-plated copper alloy construction. Rated for 3A current and 300V AC, it accommodates wire gauges from 26 to 22 AWG with an insulation diameter of 1.52mm. Operating temperature range is -65°C to 105°C, and it is RoHS compliant.
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-104480-4 technical specifications.
General
| Approvals | CSA |
| Contact Current Rating | 3A |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Style | Crimp |
| Contact Type | Socket |
| Current Rating | 3A |
| Depth | 2.66mm |
| Gender | Female |
| Insulation Diameter | 1.52mm |
| Length | 11.68mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMPMODU Short Point |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 300V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-104480-4 Datasheet
Download the complete datasheet for TE Connectivity 1-104480-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

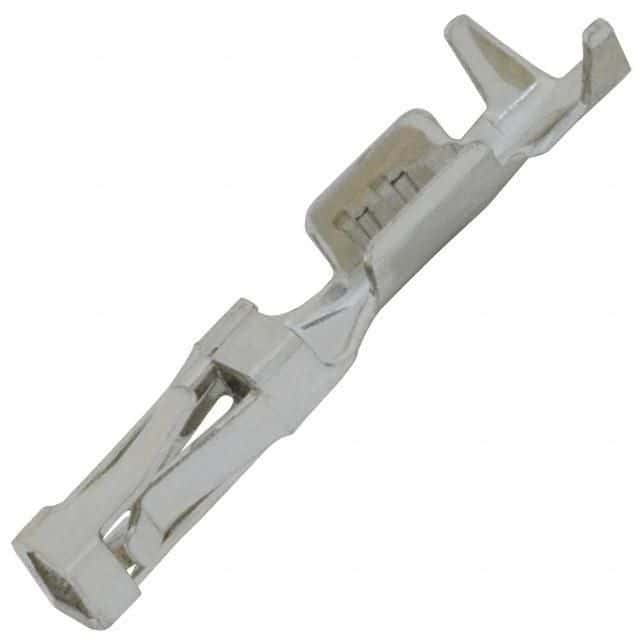

Product Images
