Rectangular connector assembly tool with a 16A current rating and 250V voltage rating. Features silver and gold plated copper contacts, a straight orientation, and screw termination. Designed for panel mounting with a 14AWG wire/cable gauge capacity. Operates within a temperature range of -40°C to 125°C and is RoHS compliant.
Voltage Rating250V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-1103414-1 technical specifications.
General
| Color | Beige |
| Contact Material | Silver, Copper |
| Contact Plating | Silver, Gold |
| Current Rating | 16A |
| Depth | 31mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 56.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Contacts | 11 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Box |
| Primary Type | Rectangular |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HTS HA.10 |
| Termination | Screw |
| Voltage Rating | 250V |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1103414-1 Datasheet
Download the complete datasheet for TE Connectivity 1-1103414-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

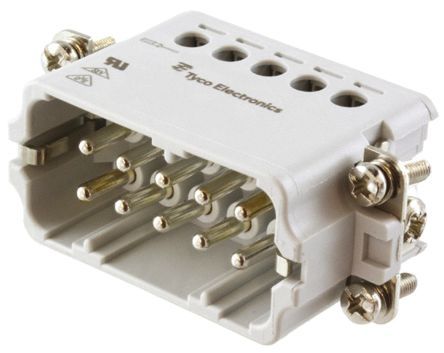

Product Images
