6-position, 2-row female socket header for signal applications. Features a 2.5mm pitch and 3.75mm row spacing, with a straight orientation and crimp termination. This black, free-hanging, cable-mount connector operates within a temperature range of -67°C to 221°C and has a maximum voltage rating of 250V AC. It is UL approved, RoHS compliant, and meets UL94 V-0 flammability rating.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-1318119-3 technical specifications.
General
Approvals
UL
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Style
Socket
Contact Type
Female Socket
Depth
20mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Halogen Free
Halogen Free
Height
0.787inch
Housing Color
Black
Lead Free
Lead Free
Length
0.35inch
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
400
Packaging
Bag
Pitch
2.5mm
Preloaded
No
Primary Type
CONNECTOR
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
3.75mm
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D-2100
Termination
Crimp
VDE Tested
No
Width
0.621inch
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1318119-3 Datasheet
Download the complete datasheet for TE Connectivity 1-1318119-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

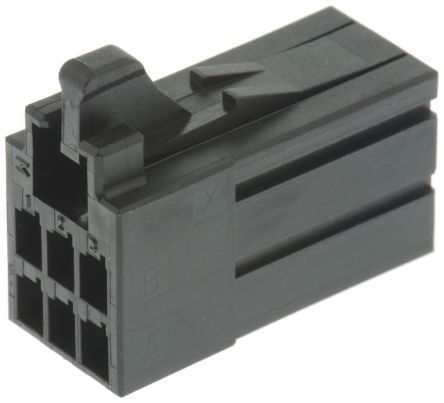

Product Images
