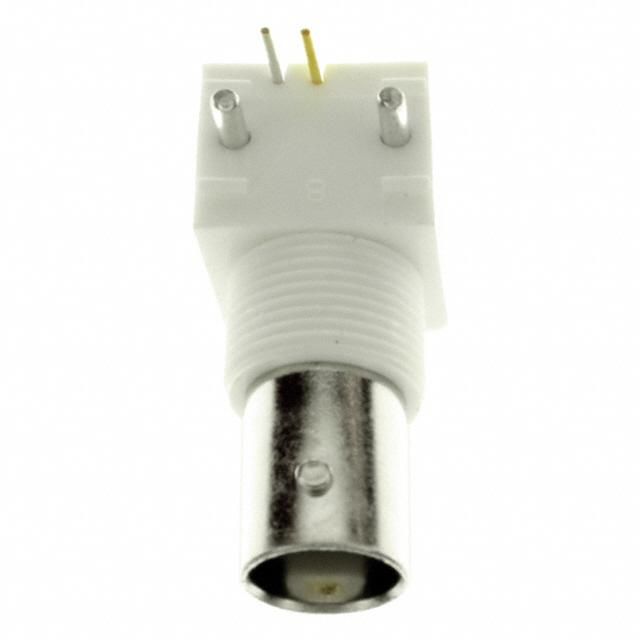

Right-angle, female RF coaxial connector with a 50-ohm impedance and a maximum operating frequency of 4 GHz. Features gold-plated brass center contacts and nickel-plated body for durability. Designed for panel mounting with solder termination and a polyethylene dielectric. Operates across a temperature range of -55°C to 85°C, offering 500 mating cycles.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 1-1337542-0 technical specifications.
General
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 35.5mm |
| Dielectric Material | PE |
| ELV | Compliant |
| Frequency | 4GHz |
| Gender | Female |
| Housing Color | White |
| Impedance | 50R |
| Insulation Material | Polyethylene |
| Length | 14.7mm |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Box |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.13inch |
| Plating | Nickel |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZDC, Greenpar |
| Tail Length | 0.169inch |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
