Right-angle PCB socket, female, 50 Ohm impedance, operating frequency up to 6 GHz. Features brass body with gold plating, bronze center contacts with gold plating, and PTFE dielectric. Designed for through-hole PCB mounting with a solder termination. Rated for 500 mating cycles and 335V, with a temperature range of -65°C to 165°C.
Frequency6GHz
Voltage Rating335V
MountingThrough Hole, PCB, Board
PolarityStandard
Quick Jump:
Technical Specifications
TE Connectivity 1-1337586-0 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 6mm |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Frequency | 6GHz |
| Gender | Female |
| Housing Color | Gold |
| Impedance | 50R |
| Insertion Loss | 0.1dB |
| Insulation Material | Polytetrafluoroethylene |
| Length | 9.5mm |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, PCB, Board |
| Number of Ports | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Tray |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.126inch |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Greenpar |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1337586-0 Datasheet
Download the complete datasheet for TE Connectivity 1-1337586-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

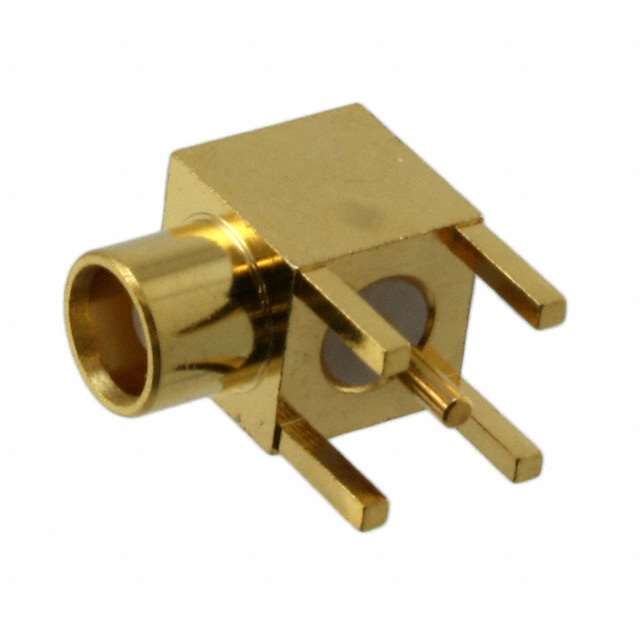

Product Images
