62-position, 4-row shrouded header for wire-to-board applications. Features straight, through-hole mounting with a 0.157-inch pitch and 0.8mm tab thickness. Male contacts are copper alloy with silver plating, suitable for signal applications up to 36V DC. Operating temperature range from -40°C to 140°C, with a UL94 HB flammability rating. Housing is black, and the component is RoHS compliant and sealable.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-1418362-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper, Tin, Bronze |
| Contact Plating | Silver |
| Depth | 57.6mm |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Housing Color | Black |
| Length | 132mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 36V |
| Mount | Through Hole |
| Number of Contacts | 62 |
| Number of Positions | 62 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 6 |
| Packaging | Tray |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | Without |
| Pitch | 0.157inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | AMP MCP 1.5/2.8 |
| Tab Thickness | 0.8mm |
| Tab Width | 0.059inch |
| Termination | Solder |
| Width | 132mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1418362-1 Datasheet
Download the complete datasheet for TE Connectivity 1-1418362-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

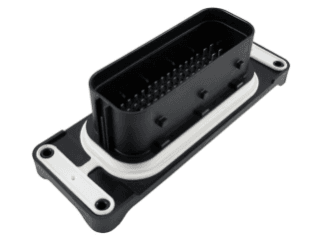

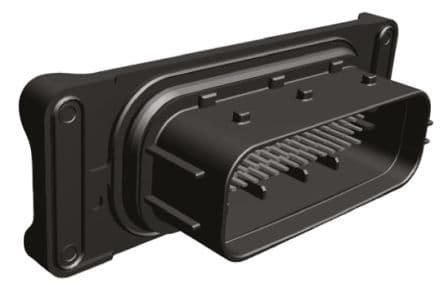

Product Images
