Eight-position, black receptacle housing assembly for wire-to-wire connector systems. Features female socket contacts, PBT body material, and a 60V voltage rating. Designed for signal applications with a 0.157-inch pitch and 7.6mm row spacing. Rated IP67 for sealing and UL94 V-0 for flammability, operating between -40°C and 140°C. This free-hanging, polarized assembly supports crimp termination and is RoHS compliant.
Voltage Rating60V
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 1-1418479-1 technical specifications.
General
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Female Socket |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 1.23inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Length | 1.732inch |
| Mating Tab Width | 0.063inch |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Package Quantity | 380 |
| Pitch | 0.157inch |
| Polarized | Yes |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 7.6mm |
| Sealable | Yes (With) |
| Series | Heavy Duty Sealed Connector Series (HDSCS), MCP 1.5K |
| Serviceable | Yes |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Voltage Rating | 60V |
| Width | 25.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1418479-1 Datasheet
Download the complete datasheet for TE Connectivity 1-1418479-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

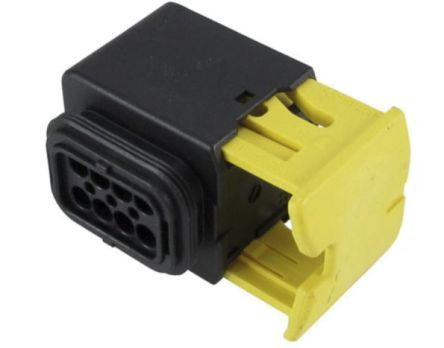

Product Images
