Assembly tool for MULTIGIG RT connectors, featuring a 9mm guide and ESD protection. This module-style tool utilizes bronze contacts with silver plating, rated for 1A current. Constructed from zinc, it operates within a -55°C to 105°C temperature range and offers through-hole termination.
PackageModule
Current Rating1A
Quick Jump:
Technical Specifications
TE Connectivity 1-1469492-9 technical specifications.
General
| Package/Case | Module |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Current Rating | 1A |
| Depth | 9mm |
| ELV | Compliant |
| Guide Hardware | Yes (With) |
| Height | 12.48mm |
| Lead Free | Not Applicable |
| Length | 22.75mm |
| Material | Zinc |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Package Quantity | 80 |
| Packaging | Bag |
| Plating | Silver |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MULTIGIG RT |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1469492-9 Datasheet
Download the complete datasheet for TE Connectivity 1-1469492-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

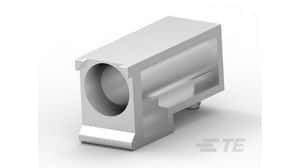

Product Images
