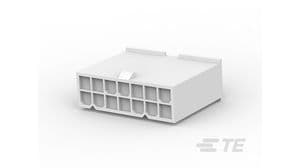

14-position, 2-row wire-to-wire connector housing with straight orientation and 4.2mm pitch. Features male pin contacts, a 9A current rating, and a 600V voltage rating. Constructed from natural colored Nylon, this cable mount housing offers a temperature range of -40°C to 221°C and a UL94 V-2 flammability rating. Designed for discrete wire termination with a 0.122-inch insulation diameter, it is RoHS compliant and suitable for free hanging or cable mounting applications.
Voltage Rating600V
Current Rating9A
MountingFree Hanging, Cable, Surface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1-1586000-4 technical specifications.
General
Approvals
CSA
Color
Natural, Beige
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
9A
Depth
23.8mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
9.6mm
Housing Color
Natural
Insulation Diameter
0.122inch
Lead Free
Lead Free
Length
30.6mm
Material
Nylon
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Cable, Surface Mount
Number of Circuits
14
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Bag
Pitch
4.2mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Width
23.8mm
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1586000-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1586000-4 to view detailed technical specifications.
