18-position, 2-row wire-to-wire connector housing with straight orientation and 4.2mm pitch. Features male pin contacts, 9A current rating, and 600V voltage rating. Constructed from natural colored Nylon, this panel mount housing has a UL94 V-0 flammability rating and operates within a -40°C to 221°C temperature range. Designed for discrete wire termination via crimp.
Voltage Rating600V
Current Rating9A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-1586018-8 technical specifications.
General
Approvals
CSA
Color
Natural
Connector System
Wire-to-Wire
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
9A
Depth
23.9mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
9.6mm
Housing Color
White
Insulation Diameter
0.122inch
Lead Free
Not Applicable
Length
39mm
Material
Nylon
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Circuits
18
Number of Contacts
18
Number of Positions
18
Number of Rows
2
Orientation
Straight
Package Quantity
500
Packaging
Bag
Pitch
4.2mm
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Width
0.94inch
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1586018-8 Datasheet
Download the complete datasheet for TE Connectivity 1-1586018-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

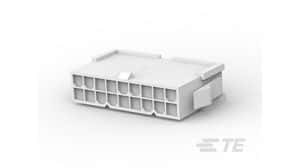

Product Images
