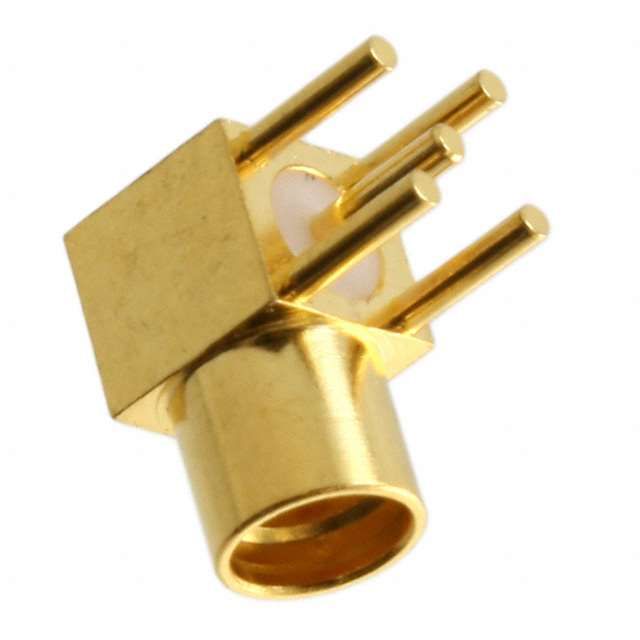

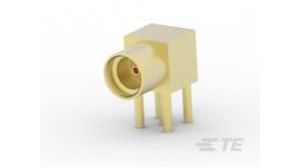

Right-angle PCB socket for RF and coaxial applications, featuring a 50-ohm impedance and operating up to 6 GHz. Constructed with a brass body and copper center contact, both plated in gold for enhanced conductivity and durability. Utilizes a PTFE dielectric for superior insulation and offers a mating cycle rating of 500. Designed for through-hole PCB mounting with a solder termination, this female connector operates across a wide temperature range of -55°C to 155°C.
Frequency6GHz
Voltage Rating170V
MountingThrough Hole, PCB
PolarityStandard
Quick Jump:
Technical Specifications
TE Connectivity 1-1634010-0 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
6.5mm
Dielectric Material
PTFE
ELV
Compliant
Frequency
6GHz
Gender
Female
Housing Color
Gold
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
3.5mm
Material
Brass
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Number of Ports
1
Operating Frequency
0 to 6 GHz
Orientation
Right Angle
Package Quantity
50
Packaging
Tray
PCB Mounting Orientation
Right Angle
Plating
Gold
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Greenpar
Termination
Solder
Voltage Rating
170V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1634010-0 Datasheet
Download the complete datasheet for TE Connectivity 1-1634010-0 to view detailed technical specifications.
