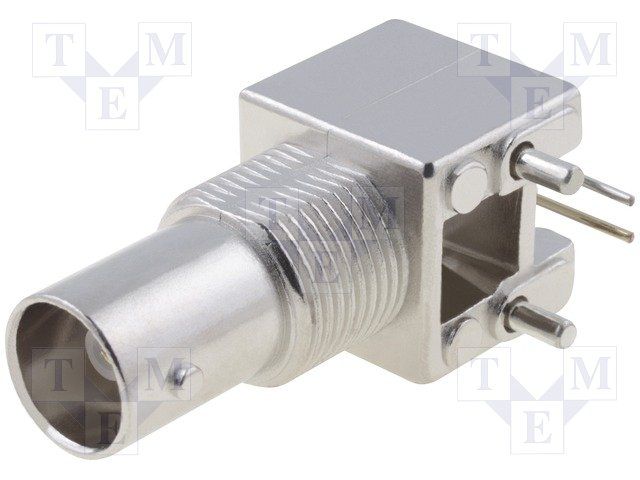

Right-angle, female RF connector with a 75-ohm impedance and operating frequency up to 2 GHz. Features a zinc body with nickel plating and gold-plated brass center contacts. Designed for panel mounting with solder termination and a polyethylene dielectric. Rated for 500V and 500 mating cycles, operating between -55°C and 85°C.
Frequency2GHz
Voltage Rating500V
MountingPanel
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 1-1634508-0 technical specifications.
General
| Body Material | Zinc |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 14.76mm |
| Dielectric Material | Polymethylpentene |
| ELV | Compliant |
| Frequency | 2GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 75R |
| Insulation Material | Polyethylene |
| Lead Free | Lead Free |
| Length | 35.57mm |
| Mating Cycles | 500 |
| Max Frequency | 2GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 2 GHz |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Box |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.126inch |
| Plating | Nickel |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZDC, Greenpar |
| Tail Length | 0.165inch |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
