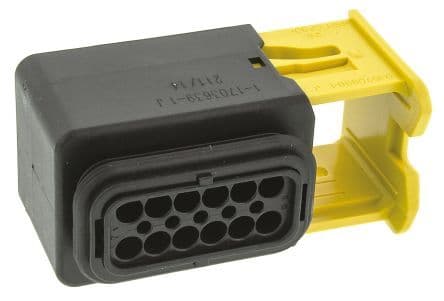

12 Pos, Female Socket, Wire-to-Wire Rectangular Connector, PBT, Black

TE Connectivity

1-1703639-1

Name: 1-1703639-1 TE Connectivity
Brand: TE Connectivity
SKU: 1-1703639-1

12 Pos, Female Socket, Wire-to-Wire Rectangular Connector, PBT, Black

12-position, 2-row, wire-to-wire connector assembly featuring female socket contacts for signal applications. This straight, free-hanging connector has a PBT body and black housing, with a 0.157-inch pitch and 0.059-inch mating tab width. It operates within a -40°C to 140°C temperature range, is IP67 rated, and meets UL94 V-0 flammability standards. Designed for crimp termination, it accommodates 16AWG wire and is RoHS compliant.

MountingFree Hanging, Cable

PolarityYes

Quick Jump:

Technical Specifications

TE Connectivity 1-1703639-1 technical specifications.

General

Body Material	PBT
Circuit Application	Signal
Color	Black
Connector System	Wire-to-Wire
Contact Type	Female Socket
Depth	25.7mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	1.23inch
Housing Color	Black
Hybrid Connector	No
Lead Free	Lead Free
Length	2.13inch
Mating Tab Width	0.059inch
Max Operating Temperature	140°C
Min Operating Temperature	-40°C
Mount	Free Hanging, Cable
Number of Contacts	12
Number of Positions	12
Number of Rows	2
Orientation	Straight
Package Quantity	300
Packaging	Box
Pitch	0.157inch
Polarized	Yes
Ratings	IP67
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	Yes (With)
Series	Heavy Duty Sealed Connector Series (HDSCS), MCP 1.5K
Serviceable	Yes
Strain Relief	No (Without)
Termination	Crimp
Width	25.7mm
Wire/Cable Gauge	16AWG
