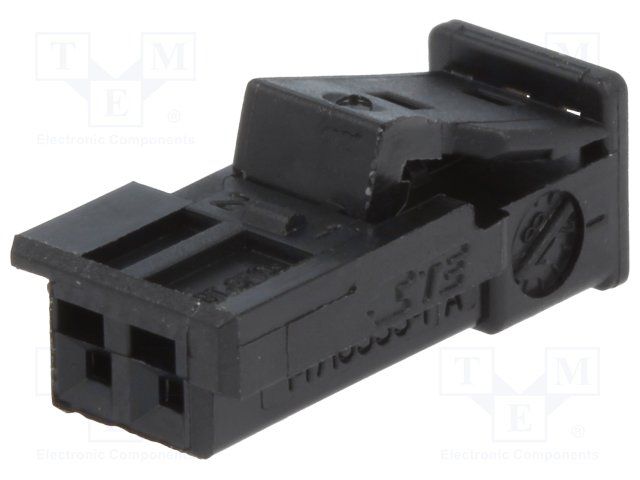

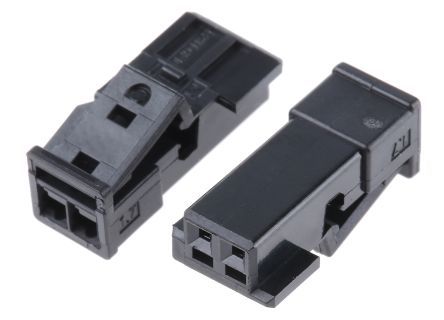

2-position, straight, female socket connector for wire-to-wire applications. Features a PBT body material, black housing color, and a 2.54mm pitch. Designed for signal circuit applications, it accommodates wire gauges from 18AWG to 24AWG and has a mating tab width of 0.025 inches. Operating temperature range is -40°C to 80°C.
Sign in to ask questions about the TE Connectivity 1-1718333-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1-1718333-1 technical specifications.
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Socket |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Gender | Female |
| Height | 0.244inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Length | 0.315inch |
| Mating Tab Width | 0.025inch |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 8700 |
| Packaging | Box |
| Pitch | 2.54mm |
| Polarized | Yes |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | MQS |
| Serviceable | No |
| Strain Relief | No (Without) |
| Width | 0.657inch |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 18AWG |
| RoHS | Compliant |
