TE CONNECTIVITY

1-1734592-6

Datasheet

0.5mm Pitch Flex-to-Board Receptacle, 16 Pos, Right Angle, Gold Contacts

TE Connectivity

1-1734592-6

Name: 1-1734592-6 TE Connectivity
Brand: TE Connectivity
SKU: 1-1734592-6

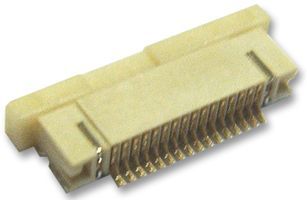

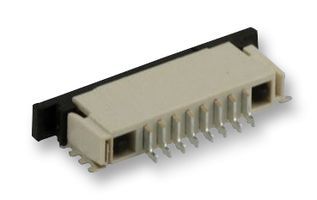

0.5mm Pitch Flex-to-Board Receptacle, 16 Pos, Right Angle, Gold Contacts

Flex-to-Board receptacle with 16 positions and 16 contacts, featuring a 0.5mm pitch. This right-angle, surface-mount connector offers a 500mA contact current rating and 250V voltage rating. Constructed with a thermoplastic housing and bronze contacts plated with gold, it operates within a -40°C to 85°C temperature range. The connector includes PCB mount retention and is packaged on tape and reel.

Voltage Rating250V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1-1734592-6 technical specifications.

General

Actuator Color	Beige
Actuator Material	Thermoplastic
Body Plating	Gold
Color	Beige
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Bottom
Contact Material	Bronze
Contact Plating	Gold
Current Rating	500mA
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.05mm
Housing Color	Natural
Lead Free	Lead Free
Lead Pitch	0.5mm
Length	13.43mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	250V
Mount	Surface Mount
Number of Contacts	16
Number of Positions	16
Number of Rows	1
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.5mm
Plating Thickness	0.025um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250V
Width	5.1mm
Wire/Cable Type	Flat Flex
