1-1734742-8

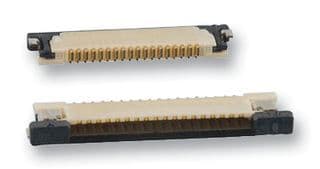

0.5mm Pitch 18 Pos Flex-to-Board Receptacle, Vertical Mount, Gold Contact

This flex-to-board receptacle features 18 contacts with a 0.5mm pitch, designed for vertical PCB mounting via SMD/SMT termination. It offers a 500mA contact current rating and a 50V voltage rating, with gold-plated bronze contacts. The straight, shrouded header has a brown thermoplastic actuator and a black housing, measuring 3.8mm wide, 3.3mm deep, and 0.1633 inches high. Operating temperature range is -4°C to 185°C, and the component is RoHS compliant and UL94 V-0 flammability rated.

Voltage Rating50V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1-1734742-8 technical specifications.

General

Actuator Color	Brown
Actuator Material	Thermoplastic
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Current Rating	500mA
Depth	3.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.1633inch
Housing Color	Black
Length	0.5787inch
Mating Alignment	Yes (With)
Max Operating Temperature	185°C
Min Operating Temperature	-4°C
Max Voltage Rating (AC)	50V
Mount	Surface Mount
Number of Contacts	18
Number of Positions	18
Number of Rows	1
Orientation	Straight
Package Quantity	1000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	0.5mm
Plating Thickness	0.007um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	50V
Width	3.8mm
Wire/Cable Type	Flat Flex
