TE CONNECTIVITY

1-1734839-0

Datasheet

FPC Connector 10 Pos 0.5mm RA SMD SMT 250V

TE Connectivity

1-1734839-0

Name: 1-1734839-0 TE Connectivity
Brand: TE Connectivity
SKU: 1-1734839-0

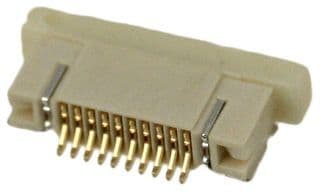

FPC Connector 10 Pos 0.5mm RA SMD SMT 250V

10-position, 0.5mm pitch, right-angle flexible flat cable (FFC) / flexible printed circuit (FPC) connector. Features a ZIF/LIF interface with gold-plated bronze contacts for 500mA current rating and 250V voltage rating. Surface mountable with a thermoplastic actuator and housing, this unshielded receptacle offers a compact 5.1mm depth and 2.05mm height. Designed for flex-to-board connectivity, it includes PCB mount retention and is RoHS compliant.

Voltage Rating250V

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1-1734839-0 technical specifications.

General

Actuator Color	Beige
Actuator Material	Thermoplastic
Body Plating	Gold
Color	Beige
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Depth	5.1mm
Dielectric Material	Thermoplastic
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.05mm
Housing Color	Natural
Lead Pitch	0.5mm
Length	10.43mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.5mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250V
Width	5.1mm
Wire/Cable Type	Flat Flex
