1-1734839-4

Datasheet

TE Connectivity

1-1734839-4

Name: 1-1734839-4 TE Connectivity
Brand: TE Connectivity
SKU: 1-1734839-4

Active

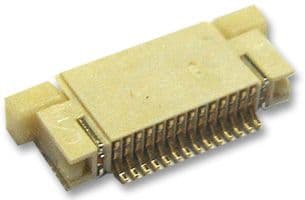

0.5mm Pitch FPC Receptacle, 14 Pos, Right Angle, Gold Contact

0.5mm pitch flex-to-board receptacle connector featuring 14 positions and 14 contacts. This right-angle, surface-mount device offers a 500mA current rating and 250V voltage rating, with gold-plated bronze contacts. Constructed from beige thermoplastic with a UL94 V-0 flammability rating, it includes mating alignment and PCB mount retention.

Voltage Rating250V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Actuator Color	Beige
Actuator Material	Thermoplastic
Body Plating	Gold
Color	Beige
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Top
Contact Material	Bronze
Contact Plating	Gold
Current Rating	500mA
Depth	5.1mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.05mm
Housing Color	Natural
Lead Pitch	0.5mm
Length	0.4893inch
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	14
Number of Positions	14
Number of Rows	1
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.5mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250V
Width	5.1mm
Wire/Cable Type	Flat Flex
