Right-angle, female, 19-position signal connector for cable-to-board applications. Features a metal body and case with gold-plated copper alloy contacts, rated for 500mA and 40V. Surface mount termination with a 0.039-inch pitch, operating between -25°C and 70°C. UL94 V-0 flammability rating and RoHS compliant. Packaged in a tray with 70 units.
PackageMetal
Voltage Rating40V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications

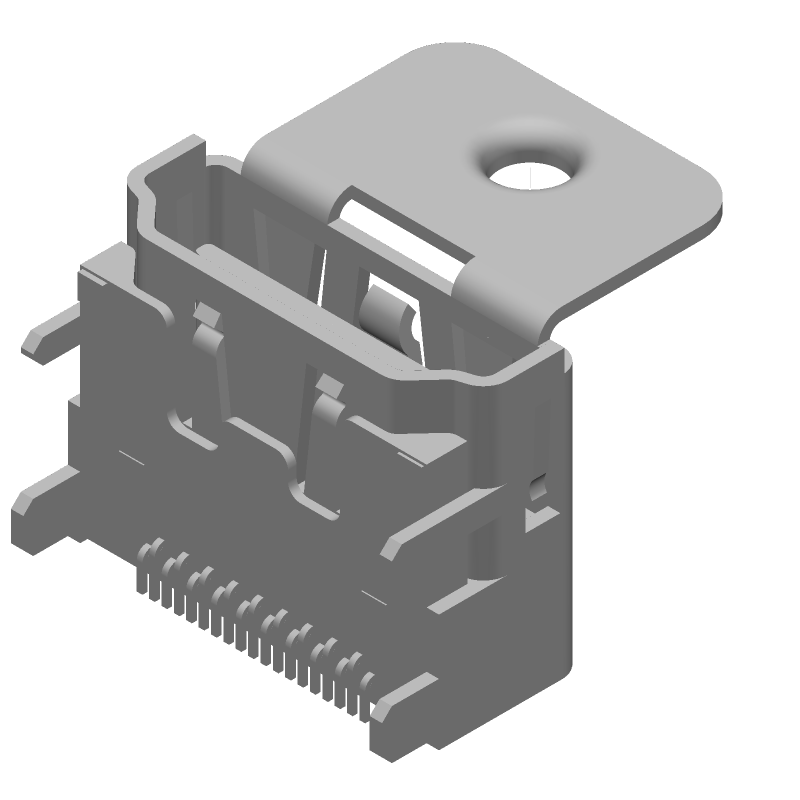

TE Connectivity 1-1747981-1 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Circuit Application | Signal |
| Color | Silver, Black |
| Connector System | Cable-to-Board |
| Contact Current Rating | 500mA |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 12mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Length | 15mm |
| Mating Cycles | 10000 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Contacts | 19 |
| Number of Ports | 1 |
| Number of Positions | 19 |
| Orientation | Right Angle |
| Package Quantity | 70 |
| Packaging | Tray |
| Pitch | 0.039inch |
| Plating | Matte, Tin |
| Preloaded | Yes |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Stackable | No |
| Termination | SMD/SMT |
| Voltage Rating | 40V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1747981-1 Datasheet
Download the complete datasheet for TE Connectivity 1-1747981-1 to view detailed technical specifications.
