Signal contact, female, for wire-to-wire connector systems. Features copper alloy construction with bright tin plating and nickel underplate for reliable connections. Designed for discrete wire termination via crimp, accommodating 16-20AWG cable sizes with an insulation diameter up to 2.8mm. Rated for a maximum current of 15A and operating temperatures from -67°C to 221°C. This straight, unshielded contact is supplied on tape and reel packaging and is RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-175196-5 technical specifications.
General
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Bright, Tin |
| Contact Retention | Yes (With) |
| Contact Type | Signal |
| Depth | 4.2mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 4mm |
| Insulation Diameter | 2.8mm |
| Lead Free | Lead Free |
| Length | 0.7inch |
| Max Current Rating | 15A |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Cable |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Dynamic D-3 |
| Shielding | Unshielded |
| Termination | Crimp |
| Underplate Material | Nickel |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-175196-5 Datasheet
Download the complete datasheet for TE Connectivity 1-175196-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

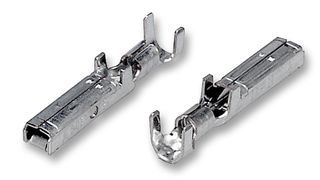

Product Images
