This wire-to-wire connector system features a female, straight orientation for discrete wire termination. It offers a 15A contact current rating with gold-plated copper alloy contacts and nickel underplate, ensuring reliable power connections. Designed for crimp termination, it accommodates wire gauges from 16AWG to 20AWG and operates within a temperature range of -67°C to 221°C. The component is UL94 V-0 flammability rated and lead-free compliant.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-175218-2 technical specifications.
General
| Connector System | Wire-to-Wire |
| Contact Current Rating | 15A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Retention | Yes (With) |
| Contact Type | Power |
| Depth | 3.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 4mm |
| Insulation Diameter | 2.8mm |
| Lead Free | Lead Free |
| Length | 0.7inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Dynamic D-3 |
| Termination | Crimp |
| Underplate Material | Nickel |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-175218-2 Datasheet
Download the complete datasheet for TE Connectivity 1-175218-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

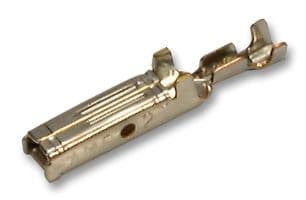

Product Images
