1-1761606-6

Datasheet

60 Pos 2.54mm Shrouded Header, Male, Straight, 1A, 250V, TH

TE Connectivity

1-1761606-6

Name: 1-1761606-6 TE Connectivity
Brand: TE Connectivity
SKU: 1-1761606-6

Active

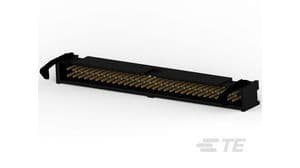

60 Pos 2.54mm Shrouded Header, Male, Straight, 1A, 250V, TH

60-position, 2-row shrouded header with 2.54mm pitch for wire-to-board applications. Features male pin contacts made of bronze with gold and tin plating, rated for 1A current and 250V AC voltage. Straight, through-hole termination with a 9.19mm height and 9.14mm width. Operating temperature range from -65°C to 105°C, with UL94 V-0 flammability rating.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	0.237inch
Contact Plating	Gold, Tin
Contact Post Length	2.6mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	9.19mm
Housing Color	Black
Lead Free	Lead Free
Length	3.3inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	60
Number of Positions	60
Number of Rows	2
Orientation	Straight
Package Quantity	6
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.76mm
Termination	Through Hole
Voltage Rating	250V
Width	9.14mm
