TE CONNECTIVITY

1-178314-5

Datasheet

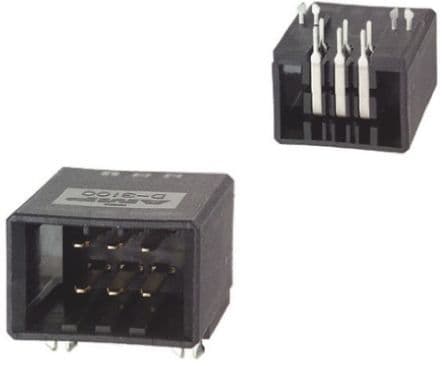

4 Pos Wire-to-Board Power Connector, 15A, 250V, Through Hole, Vertical

TE Connectivity

1-178314-5

Name: 1-178314-5 TE Connectivity
Brand: TE Connectivity
SKU: 1-178314-5

4 Pos Wire-to-Board Power Connector, 15A, 250V, Through Hole, Vertical

4-position, 1-row wire-to-board power connector with male pin contacts. Features a 0.149-inch pitch, 15A current rating, and 250V voltage rating. This shrouded, vertical through-hole mount connector has a copper alloy contact material with tin plating and a UL94 V-0 flammability rating. Halogen-free and RoHS compliant, it operates within a temperature range of -67°C to 221°C.

Voltage Rating250V

Current Rating15A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-178314-5 technical specifications.

General

Approvals	UL
Color	Black
Connector System	Wire-to-Board
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Retention	No (Without)
Contact Style	Straight
Contact Type	Male Pin
Current Rating	15A
Depth	9.35mm
Flammability Rating	UL94 V-0
Halogen Free	Halogen Free
Height	0.85inch
Housing Color	Black
Length	1inch
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	4
Number of Ports	1
Number of Positions	4
Number of Rows	1
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	19
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	0.149inch
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Selectively Loaded	No (Without)
Series	Dynamic 3100
Shielding	Unshielded
Shrouded	Yes (With)
Strain Relief	No (Without)
Tail Length	3.8mm
Termination	Solder
VDE Tested	No
Voltage Rating	250V
Width	0.368inch
