Rectangular wire housing connector with 10 positions and 10 contacts, featuring a 2mm pitch and straight orientation for cable mounting. This female socket connector system supports wire-to-wire connections, rated for 4A current and 125V AC/DC voltage. Constructed from natural colored Nylon, it offers a contact current rating of 4A with Tin plated Bronze contacts and a UL94 V-0 flammability rating. Designed for crimp termination, it accommodates wire gauges from 22AWG to 30AWG and operates within a temperature range of -22°C to 221°C.
Voltage Rating125V
Current Rating4A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-179228-0 technical specifications.
General
Approvals
CSA
Color
Natural
Connector System
Wire-to-Wire
Contact Current Rating
4A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
4A
Depth
6.6mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
0.26inch
Housing Color
Natural
Lead Free
Not Applicable
Length
0.8661inch
Material
Nylon
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Free Hanging, Cable
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
1500
Packaging
Bag
PCB Mount Retention
Without
Pitch
0.079inch
Primary Type
CONNECTOR
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMP CT
Shape
Rectangular
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
0.181inch
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-179228-0 Datasheet
Download the complete datasheet for TE Connectivity 1-179228-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

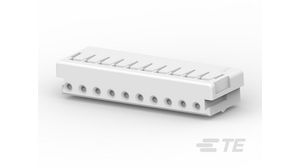

Product Images
