TE CONNECTIVITY

1-179228-4

Datasheet

14 Pos 2mm Crimp Wire Housing, Female Socket, 4A, 125V

TE Connectivity

1-179228-4

Name: 1-179228-4 TE Connectivity
Brand: TE Connectivity
SKU: 1-179228-4

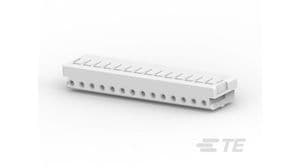

14 Pos 2mm Crimp Wire Housing, Female Socket, 4A, 125V

Rectangular wire housing connector, 14 positions, 2mm pitch, straight orientation, female socket contacts. Features a 4A current rating, 125V voltage rating, and operates from -22°C to 221°C. Constructed from natural colored Nylon, it is RoHS compliant and UL94 V-0 flammability rated. Designed for wire-to-wire applications, it accepts wire gauges from 22AWG to 30AWG and is CSA approved.

Voltage Rating125V

Current Rating4A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1-179228-4 technical specifications.

General

Approvals	CSA
Color	Natural
Connector System	Wire-to-Wire
Contact Current Rating	4A
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Female Socket
Current Rating	4A
Depth	6.6mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	0.26inch
Housing Color	Natural
Lead Free	Not Applicable
Length	30mm
Material	Nylon
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	125.125kV
Mount	Free Hanging, Cable
Number of Contacts	14
Number of Positions	14
Number of Rows	1
Orientation	Straight
Package Quantity	1000
Packaging	Bag
PCB Mount Retention	Without
Pitch	0.079inch
RoHS Compliant	Yes
Sealable	No (Without)
Series	CT
Shape	Rectangular
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating	125V
Voltage Rating (AC)	125V
DC Rated Voltage	125V
Width	0.181inch
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	22AWG
Wire/Cable Gauge	22AWG
