1-1827864-3

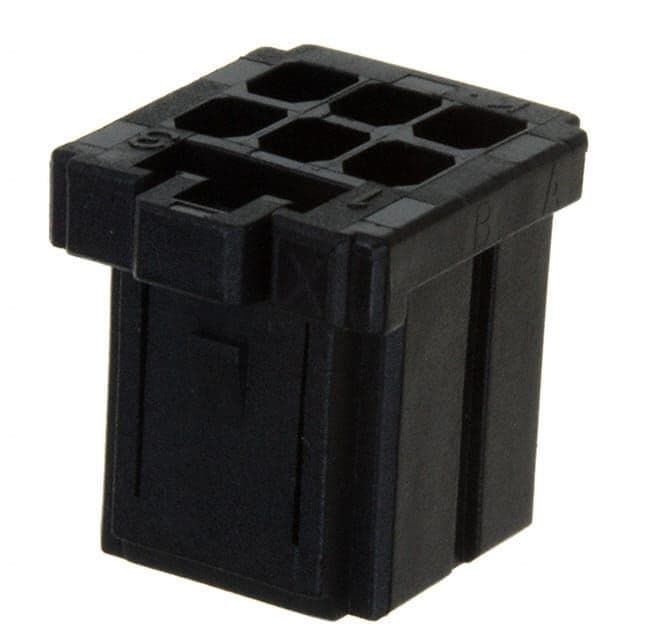

6 Pos 2 Row Black Receptacle Connector, 2.5mm Pitch, 250V

6-position, 2-row straight receptacle connector with a 2.5mm pitch. Features a black housing, female socket contact type, and a wire-to-wire connector system. Rated for 250V AC max operating voltage and a temperature range of -67°C to 221°C. UL94 V-0 flammability rating, RoHS compliant, and halogen-free. Designed for crimp termination and free-hanging mounting.

MountingFree Hanging

Quick Jump:

Technical Specifications

TE Connectivity 1-1827864-3 technical specifications.

General

Approvals	UL
Color	Black
Connector System	Wire-to-Wire
Contact Type	Female Socket
Depth	11.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Halogen Free	Halogen Free
Height	0.444inch
Housing Color	Black
Lead Free	Lead Free
Length	0.397inch
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging
Number of Contacts	6
Number of Positions	6
Number of Rows	2
Orientation	Straight
Package Quantity	300
Packaging	Bag
Pitch	2.5mm
Preloaded	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.129inch
Sealable	No (Without)
Selectively Loaded	No (Without)
Series	Dynamic D-1200
Termination	Crimp
VDE Tested	No
Width	12.45mm
Wire/Cable Gauge	18AWG
