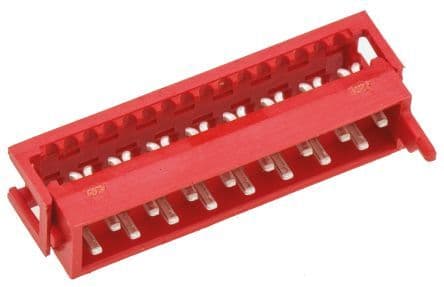

16 Pos 2 Row 0.05" Pitch Wire-to-Board Header, 1.5A, Red, IDC, RA

16-position, 2-row right-angle wire-to-board header with IDC termination. Features male pin contacts made of tin-plated bronze, rated for 1.5A and 230V, with a 0.05-inch pitch and 0.059-inch row spacing. Encased in a red, UL94 V-0 flammability rated housing, this shrouded connector operates from -40°C to 105°C and is RoHS compliant. Designed for free-hanging, cable mounting with 28AWG ribbon wire.

Voltage Rating230V

Current Rating1.5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1-215083-6 technical specifications.

General

Board Standoff	No (Without)
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	1.5A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Male Pin
Current Rating	1.5A
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	6.8mm
Housing Color	Red
Insulation Diameter	0.035inch
Lead Free	Not Applicable
Length	23.8mm
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	230V
Mount	Free Hanging, Cable
Number of Contacts	16
Number of Positions	16
Number of Rows	2
Orientation	Right Angle
Package Quantity	2500
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.059inch
Series	Micro-MaTch
Shrouded	Yes (With)
Termination	IDC
Voltage Rating	230V
Wire/Cable Gauge	28AWG
Wire/Cable Type	Ribbon
